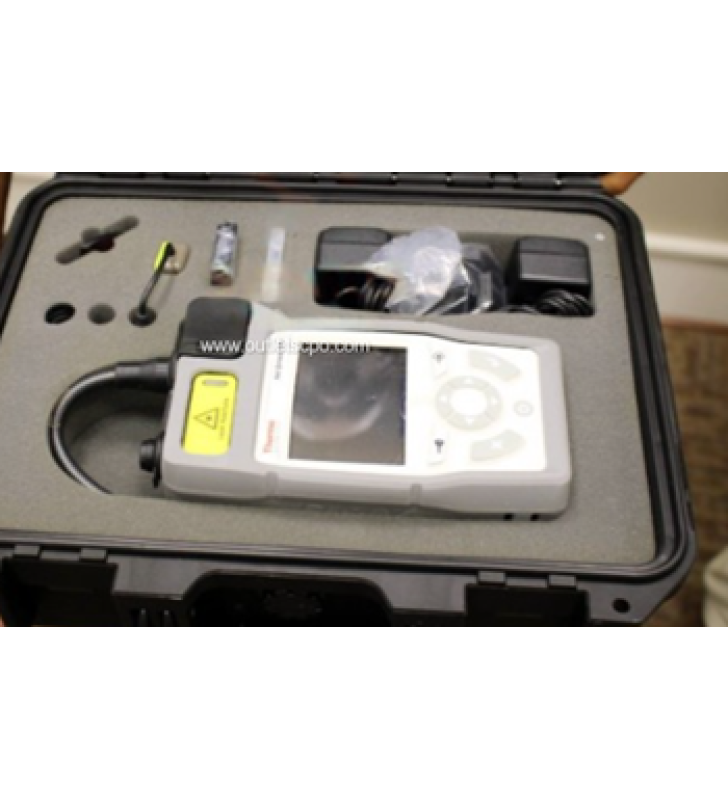

Thermo Scientific FirstDefender RMX Raman Spectrometer

Specifications

Principle of Operation Raman Spectroscopy.

Monochromator Spectral Range 781 nm - 1014 nm.

Raman Spectrum Range 250 cm-1 to 2875 cm-1.

Spectral Resolution 7 to 10.5 cm-1 (FWHM) across range.

Laser (excitation wavelength) 785 nm +/- 0.5 nm, 2 cm-1 linewidth.

Laser Output Settable,  75 mW, 125 mW, 250 mW.

Rayleigh Rejection Filters OD 7.

Detector Silicon CCD 2048 Pixels.

Detection Mode Direct Dispersive.

Dispersion Mode Single Pass Spectrometer (1200 groove/mm Blazed @ 900 nm ).

Nose Collection Optics NA= 0.33.

Nose Beam Divergence 15 degrees half angle.

Weight 2.0 lbs (919g).

Size 7.7 x 4.5 x 2.4 in (19.6cm x 11.4cm x 6.1cm).

Use Mode Flexible: handheld with fixed probe; vial mode; or robot-mounted.

Working Distance ~16 mm without nose cone; ~5mm with nose cone.

Exposure Manual, Automatic modes (5ms minimum).

Scan Delay Optional; user-configurable delay up to 120 seconds.

Battery Removable and rechargeable lithium ion battery or 123a (eg SureFire™ ) batteries; >4 hours operation External.

Power Supply DC Wall Adapter, 12 V 1.25 A Operating Temperature -4 °F to 122 °F (-20 °C to +50 °C).

Continuous Robot Integration Integration kit required from robot manufacturer for mounting and universal control.
